SaniTite HP Bends Fittings Manual
Filename:
SaniTite HP Bends Fittings Manual.pdf

This document is the SaniTite HP Bends Fittings Manual. Various Bends with charts and diagrams shown.

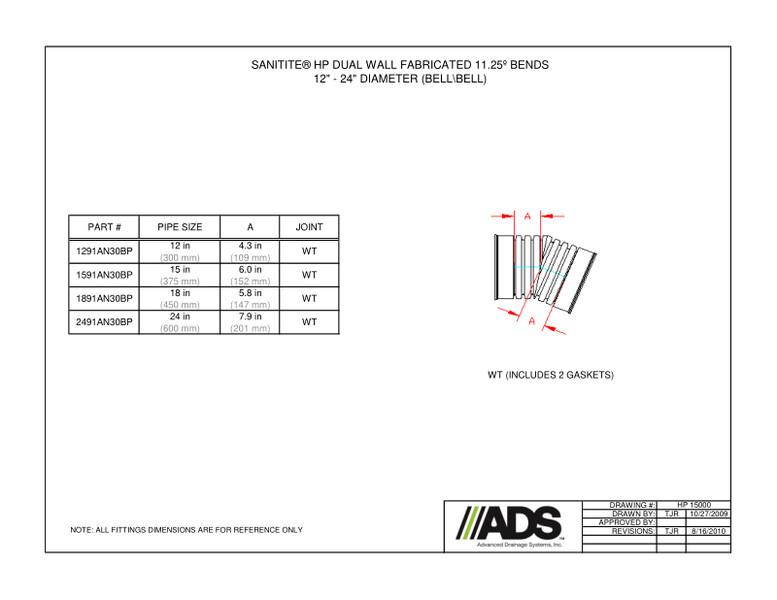

The Sanitite HP Dual Wall Fabricated 11.25 degree Bends 12”-24” diameter (Bell/Bell) chart shows the part number, pipe size, A/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Triple Wall Fabricated 11.25 degree Bends 30” diameter (IB Bell/IB Spigot) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Triple Wall Fabricated 11.25 degree Bends 30”-60” diameter (IB Bell/IB Spigot) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Dual Wall Fabricated 22.5 degree Bends 12”-24” diameter (Bell/Bell) chart shows the part number, pipe size, A/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Triple Wall Fabricated 22.5 degree Bends 30” diameter (IB Bell/IB Spigot) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Triple Wall Fabricated 22.5 degree Bends 30”-60” diameter (IB Bell/IB Spigot) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Dual Wall Fabricated 30 degree Bends 12”-24” diameter (Bell/Bell) chart shows the part number, pipe size, A/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Triple Wall Fabricated 30 degree Bends 30” diameter (IB Bell/IB Spigot) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Triple Wall Fabricated 30 degree Bends 30”-60” diameter (IB Bell/IB Spigot) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Dual Wall Fabricated 45 degree Bends 12”-24” diameter (Bell/Bell) chart shows the part number, pipe size, A/Joint. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Dual Wall Fabricated 45 degree Bends 12”-24” diameter (Bell/Bell) chart shows the part number, pipe size, A/B/Joint. The diagram shows the unit with WT (includes 2 gaskets).
Sizes up to 90 degree Bends listed.
