HP Storm Bends Fittings Manual

Filename:
HP Storm Bends Fittings Manual.pdf

HP Storm Bends Fittings Manual

This document is the HP Storm Bends Fittings Manual. Tables with pipe size and diagrams of various bends with descriptions included.

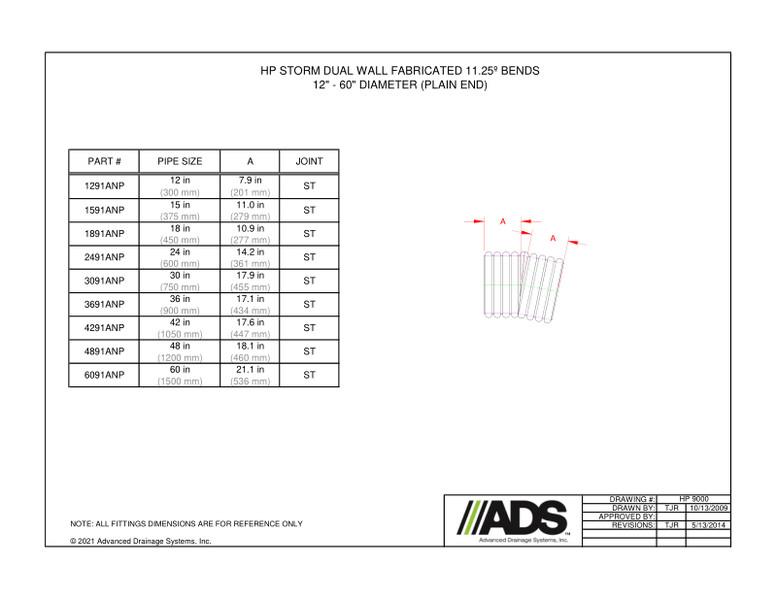

The information for the HP Storm Dual Wall Fabricated 11.25 degree bends 12”-60” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram included.

The HP Storm Dual Wall Fabricated 11.25 degree bends 12”-24” diameter (Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 11.25 degree bends 30”-60” diameter (IB Bell/IB Spigot) is shown with a chart that lists the values for Part number, pipe size, A/B and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 22.5 degree bends 12”-60” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram included.

The HP Storm Dual Wall Fabricated 22.5 degree bends 12”-24” diameter (Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 22.5 degree bends 30”-60” diameter (IB Bell/IB Spigot) is shown with a chart that lists the values for Part number, pipe size, A/B and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 30 degree bends 12”-60” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram included.

The HP Storm Dual Wall Fabricated 30 degree bends 12”-24” diameter (Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 30 degree bends 30”-60” diameter (IB Bell/IB Spigot) is shown with a chart that lists the values for Part number, pipe size, A/B and Joint. Diagram with WT includes 2 gaskets.

More products in various bend sizes listed with charts and diagrams.
