104A Pipe Anchoring Detail (Geotextile)

Filename:
104A Pipe Anchoring Detail (Geotextile).dwg

104A Pipe Anchoring Detail (Geotextile)

This document is the 104A Pipe Anchoring Detail (Geotextile). A diagram with descriptions and notes provided.

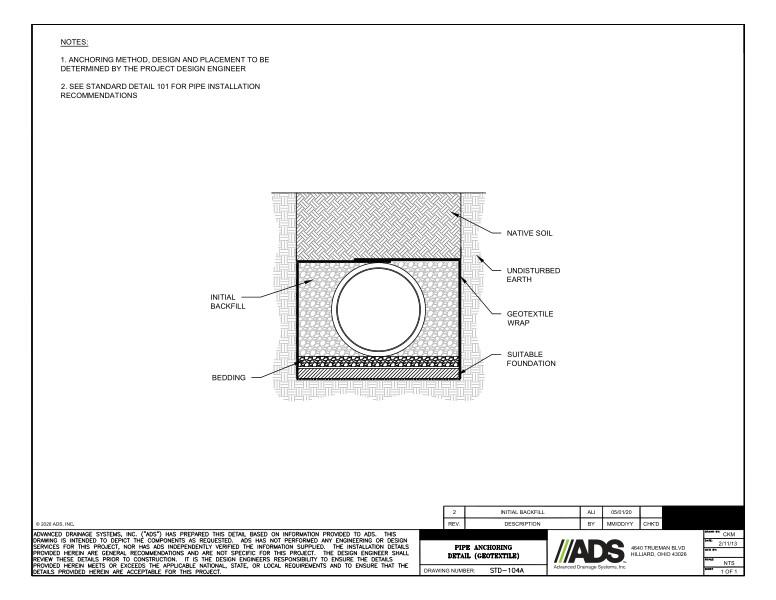

The Pipe Anchoring Detail (Geotextile) shows the initial backfill, bedding, native soil, undisturbed earth, geotextile wrap and suitable foundation.

Notes state that anchoring method, design and placement to be determined by project engineer. See standard detail 101 for pipe installation recommendations.
