This document is the Internal Snap Tee (HDPE Single Wall Fittings). A detail with table provided.

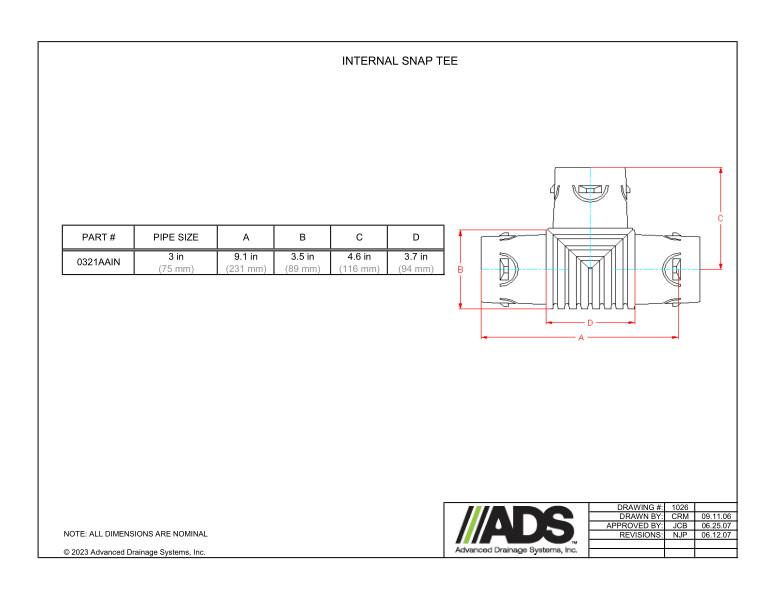

The Internal Snap Tee detail shows the snap connection with A/B/C/D dimensions.

A table with part number, pipe size and A/B/C/D dimensions provided.

All dimensions are nominal.
