15" - 24" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
15" - 24" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings).pdf
![15" - 24" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings)](https://assets.adspipe.com/m/5e2dc38192384348/webimage-15-24-StormTech-Dual-Wall-Fabricated-Soil-Tight-Double-Reducing-Manifolds-StormTech-Dual-Wall-HDPE-Fittings.jpg)
This document is the 15" - 24" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings). Diagram and table included.

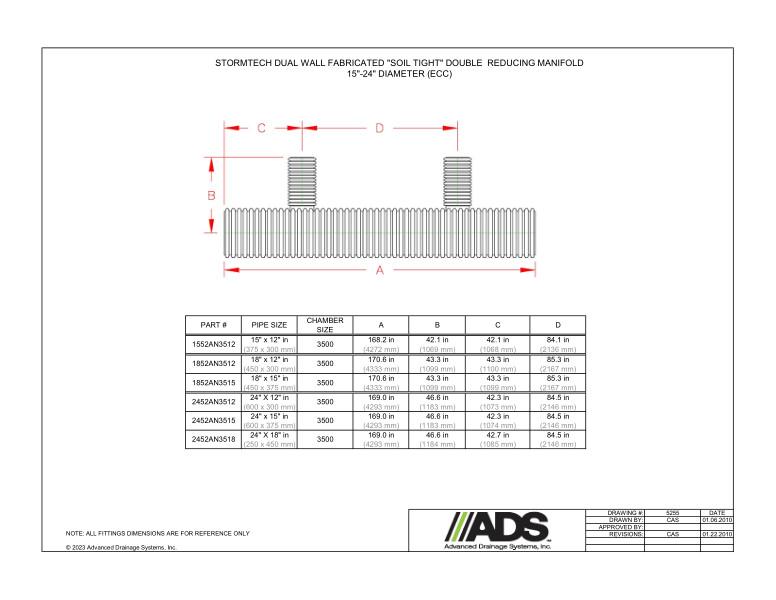

StormTech Dual Wall Fabricated “Soil Tight” Double Reducing Manifold 15" - 24" diameter shows the manifold diagram with A/B/C/D dimensions.
The table lists the part number, pipe size, chamber size and A/B/C/D dimension values.
All fittings dimensions are for reference only.
