12" - 18" Single Wall Multiple Tees (HDPE Single Wall Fittings)

Filename:
12" - 18" Single Wall Multiple Tees (HDPE Single Wall Fittings).pdf

Download Document (pdf) View in Browser
12" - 18" Single Wall Multiple Tees (HDPE Single Wall Fittings)

This document is the 12”- 18” Single Wall Multiple Tees (HDPE Single Wall Fittings). A detail with table provided.

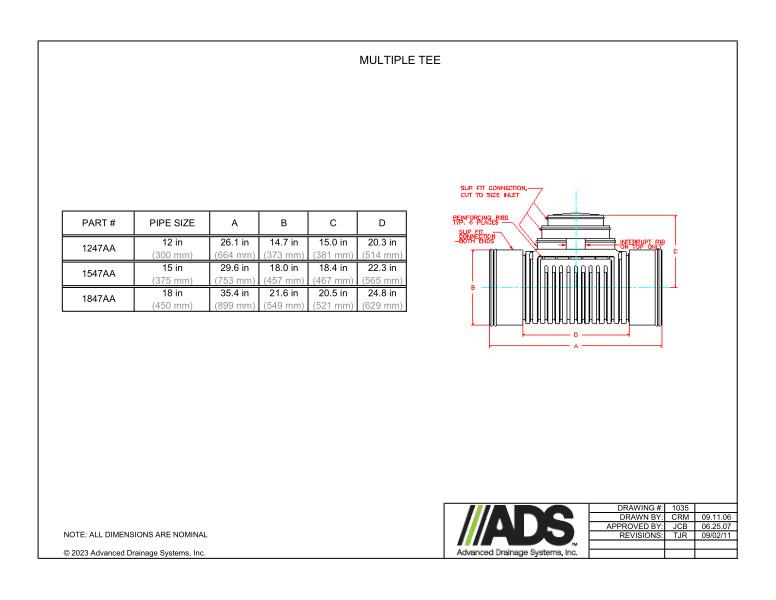

The multiple Tee detail shows the slip fit connection cut to size inlet, reinforcing ribs TYP-6 places, slip fit connection both ends, interrupt rib on top only and A/B/C/D dimensions.

A table with part number, pipe size and A/B/C/D dimensions is provided.

All dimensions are nominal.
