Inserta Tee Into Concrete Pipe Applications Detail
Filename:
Inserta Tee Into Concrete Pipe Applications Detail.pdf
![Inserta Tee Into Concrete Pipe Applications Detail](https://assets.adspipe.com/m/48fc46aff1dbd17c/webimage-Inserta-Tee-Into-Concrete-Pipe-Applications-Detail.jpg)

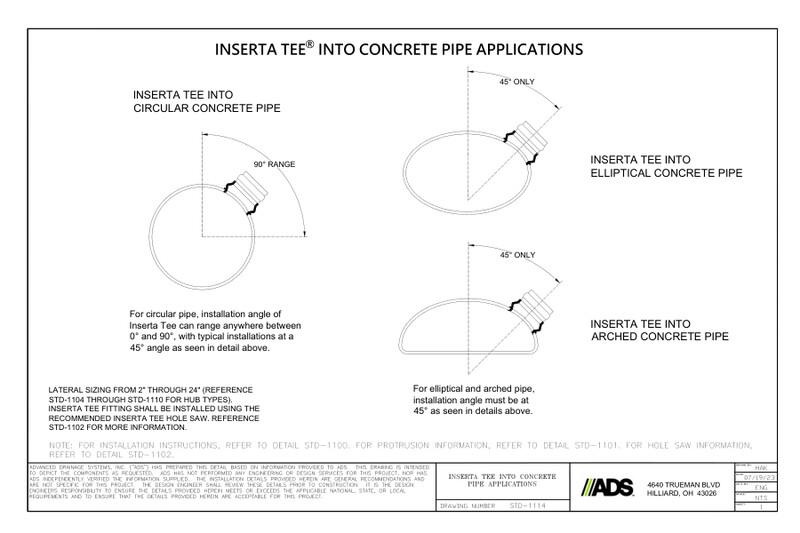

This document explains the Inserta Tee Into Concrete Pipe Applications Detail. 3 details of the Inserta Tee into circular, elliptical and arched concrete pipe shown .
The Inserta Tee into Circular Concrete Pipe detail shows the 90 degree range. For circular pipe, installation angle of Inserta Tee can range anywhere between 0° and 90°, with typical installations at a 45° angle.
The 2nd detail shows the Inserta Tee into Elliptical Concrete Pipe at a 45 degree angle only. The 3rd detail shows the Inserta Tee into Arched Concrete Pipe at a 45 degree angle only. For elliptical and arched pipe, installation angle must be at 45°.
Lateral sizing from 2” through 24” Inserta Tee fitting shall be installed using the recommended Inserta Tee hole saw.
