MC-7200 10" (250 mm) StormTech Inspection Port Detail

Filename:
MC-7200 10" (250 mm) StormTech Inspection Port Detail.pdf

MC-7200 10" StormTech Inspection Port Detail

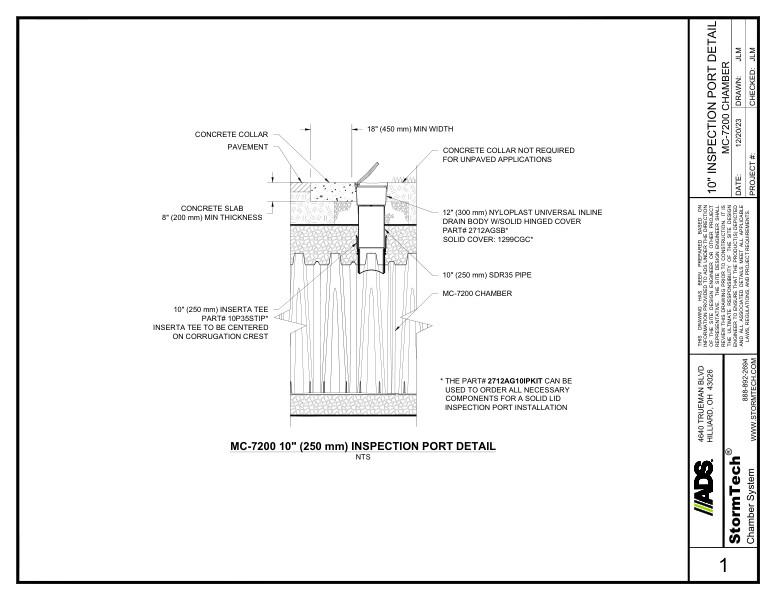

This document details the MC-7200 10" StormTech Inspection Port. A diagram showing the concrete collar with minimum thickness size, concrete slab Nyloplast inline drain body with part number, SDR35 pipe, Inserta Tee placement and part number in relation to the placement of the MC-7200 Chamber.
