207C 12-30 HP Storm Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail

Filename:
207C 12-30 HP Storm Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail.dwg

Download Document (dwg)
207C 12-30 HP Storm Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail

This document is the 207C 12-30 HP Storm Booted (Cast-In) Structure Connection with Corr Pipe Adapter Gasket Detail. A detail and charts provided.

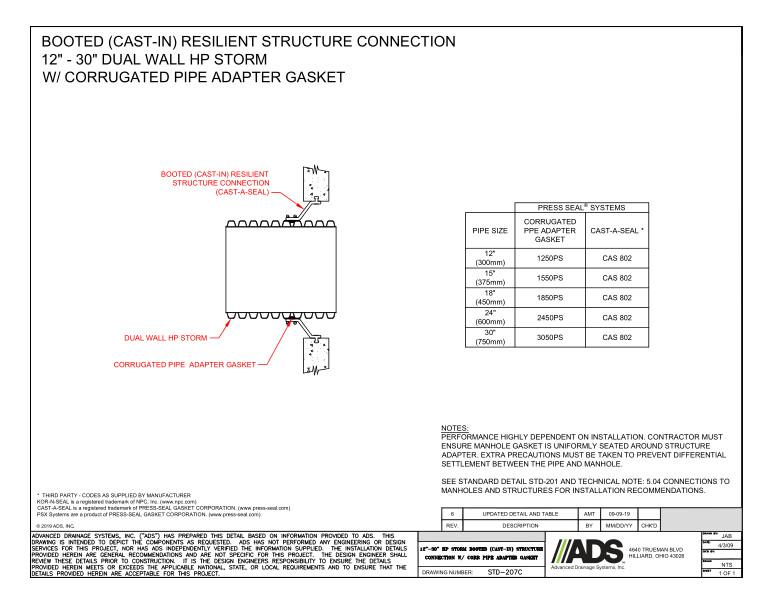

The detail shows the Booted (Cast-In) resilient structure connection, Dual Wall HP Storm and the corrugated pipe adapter gasket.

One chart features the Press Seal Systems with values for pipe size, corrugated pipe adapter gasket and Cast-A-Seal.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter.
