3" - 10" Blind Tees (HDPE Single Wall Fittings)

This document is the 3”- 10” Blind Tees (HDPE Single Wall Fittings). A detail with table provided.

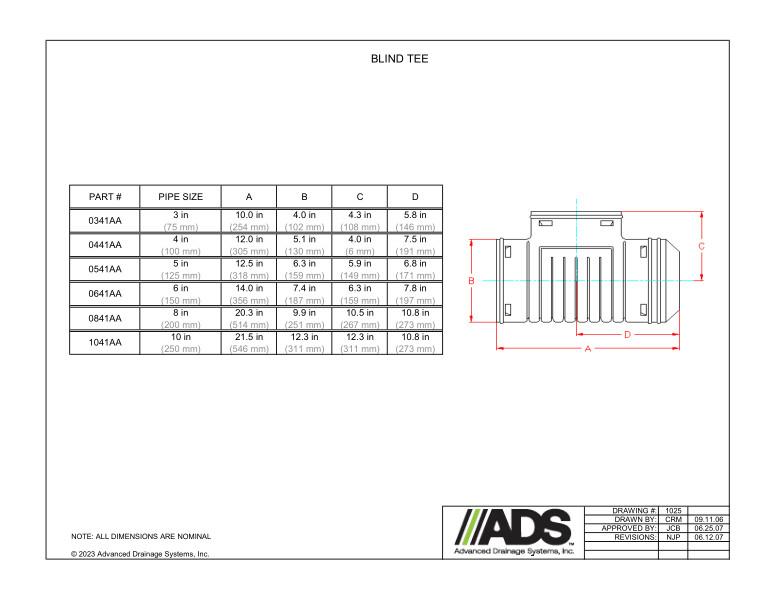

The blind Tee detail shows the A/B/C/D dimensions.

A table with part number, pipe size and A/B/C/D dimensions is provided.

All dimensions are nominal.

3" - 10" Blind Tees (HDPE Single Wall Fittings)
