3" - 6" Downspout Adapters (HDPE Miscellaneous Fittings)

This document is the 3” – 6” Downspout Adapters (HDPE Miscellaneous Fittings). Diagrams with table are provided.

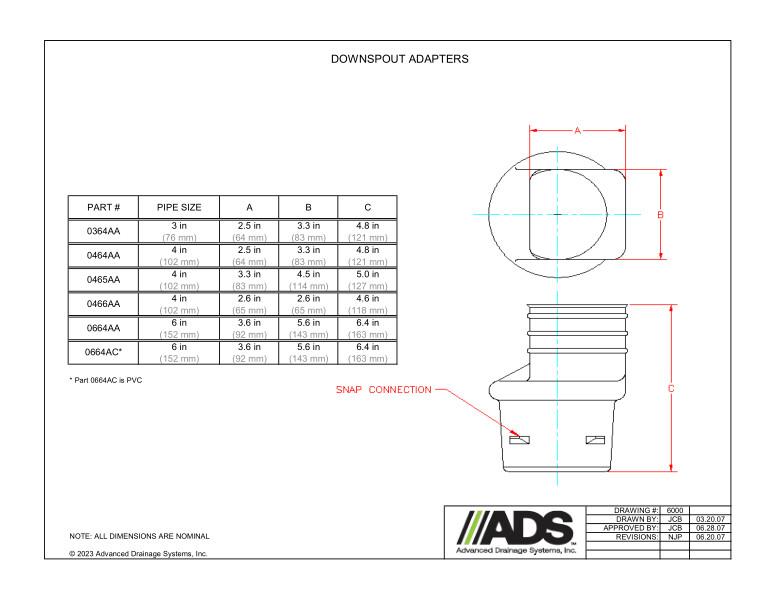

The Downspout Adapters diagrams shows the A/B dimensions and the C dimension with snap connection.

A table provides the information for part number, pipe size and A/B/C sizes.

All dimensions are nominal.

3" - 6" Downspout Adapters (HDPE Miscellaneous Fittings)
