Filename: Internal Snap Plug (HDPE Singlewall Fittings).pdf
This document is the Internal Snap Plug (HDPE Singlewall Fittings). A detail with A/B dimensions, chart and note provided.

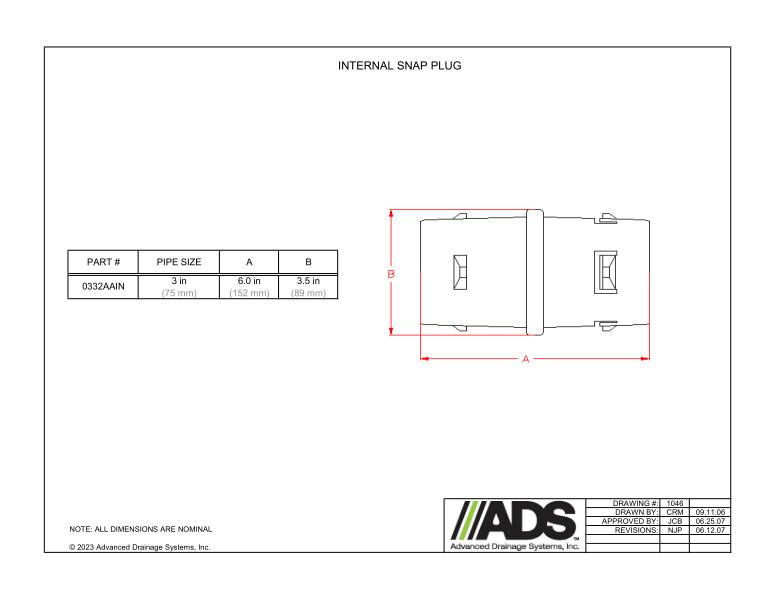

The detail shows the internal snap plug with A/B dimensions.
A table with part number, pipe size and A/B dimensions provided.
A note states that all dimensions are nominal.
