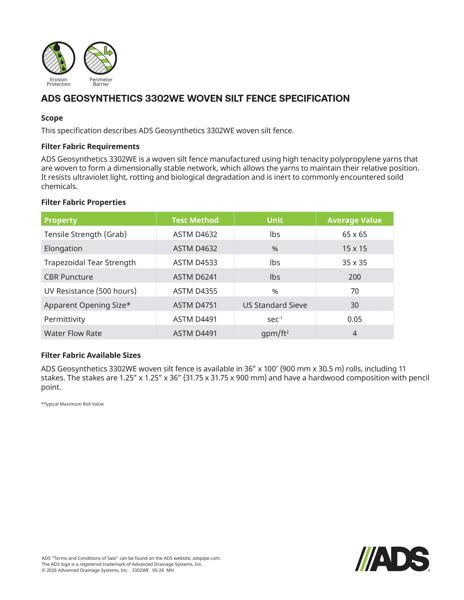

3302WE Silt Fence Geosynthetic Specification

3302WE Silt Fence Geosynthetic Specification.pdf

3302WE Silt Fence Geosynthetic Specification

This document is the ADS Geosynthetics 3302WE Silt Fence. A description of filter fabric requirements and table for filter fabric properties are included.

ADS Geosynthetics 3302WE is a silt fence fabric manufactured using high tenacity polypropylene yarns that are woven to form a dimensionally stable network, which allows the yarns to maintain their relative position. It resists ultraviolet deterioration, rotting and biological degradation and is inert to commonly encountered soil chemicals.

A filter fabric properties table lists the values for tensile strength, elongation, trapezoidal tear strength, CBR puncture, UV stability, apparent opening size, permittivity and water flow rate with test method and typical roll value.

ADS Geosynthetics 3302WE grade woven silt fence is available in 36” x 100’ rolls including 11 stakes. The stakes are 1.25” x 1.25” x 48” and have a hardwood composition with pencil point.
