Single Wall Reducing Tees (HDPE Single Wall Fittings)

This document is the Single Wall Reducing Tees (HDPE Single Wall Fittings). A detail with table provided.

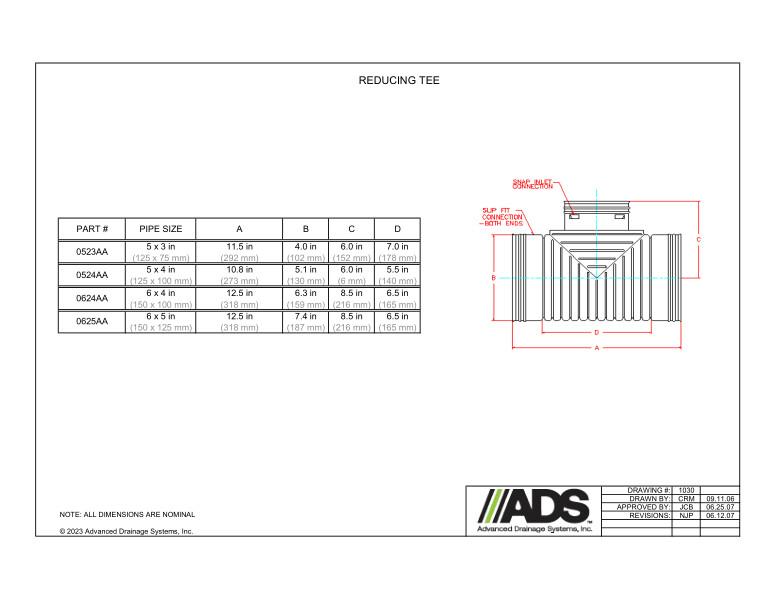

The Reducing Tee detail shows the snap inlet connection, slip fit connection-both ends and A/B/C/D dimensions.

A table with part number, pipe size and A/B/C/D dimensions is provided.

All dimensions are nominal.

Single Wall Reducing Tees (HDPE Single Wall Fittings)
