This document is the HDPE Dual Wall Couplers - HDPE Dual Wall Couplers - ADS Bell-Bell Couplers 36”-60” Diameter. Illustration and reference chart is shown.

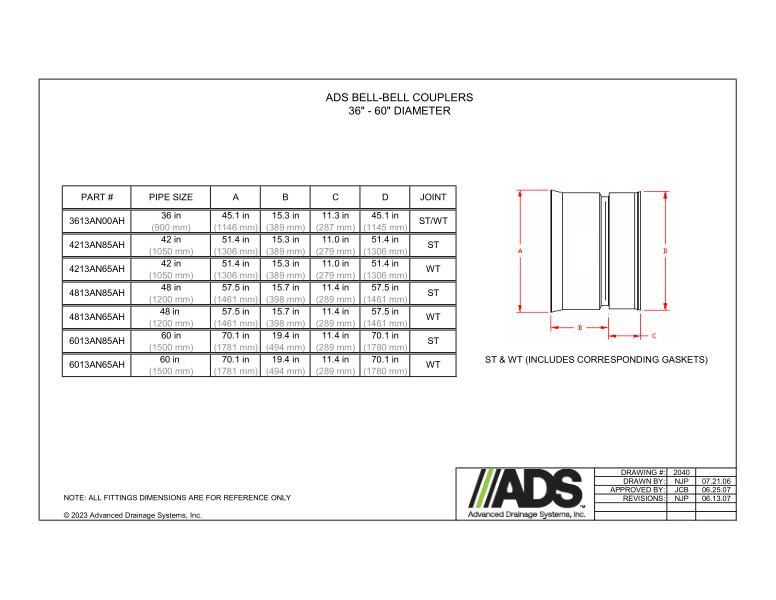

The ADS Bell-Bell Couplers 36”-60” diameter side view illustration with ST & WT including corresponding gaskets is shown. A table with part number, pipe size and A/B/C/D/Joint is provided.

All fittings dimensions are for reference only.
