6" - 24" Diameter StormTech Dual all Fabricated "Soil Tight" "Plain End" Single Manifold (StormTech Dual Wall HDPE Fittings)

This document is the 6" - 24" Diameter StormTech Dual Wall Fabricated Soil Tight Plain End Single Manifold (StormTech Dual Wall HDPE Fittings). A diagram with table provided.

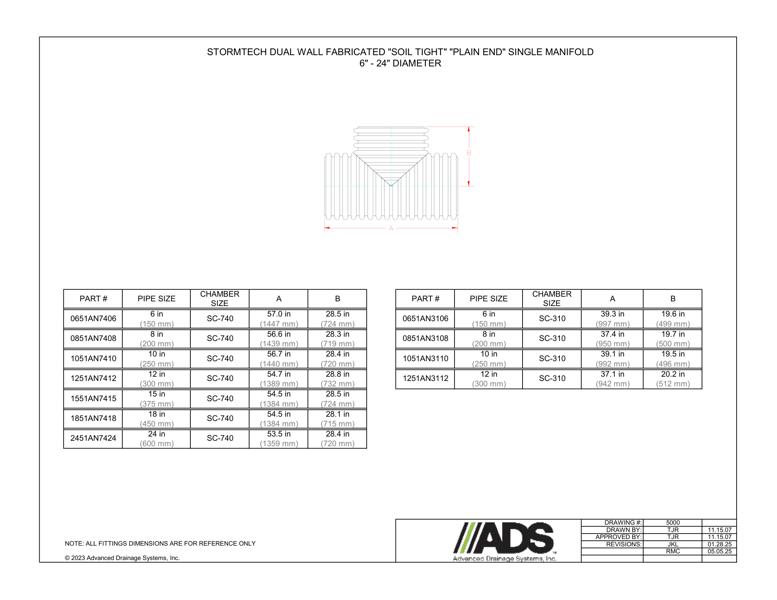

The StormTech dual wall Fabricated “Soil Tight” “Plain End” Single Manifold 6" - 24" diameter is shown in a diagram that shows A/B dimensions.

A table with the information for part number, pipe size and A/B sizes is provided.

All fittings dimensions are for reference only.
