PP5-XGTR Turf Reinforcement Mat Geosynthetic Specification

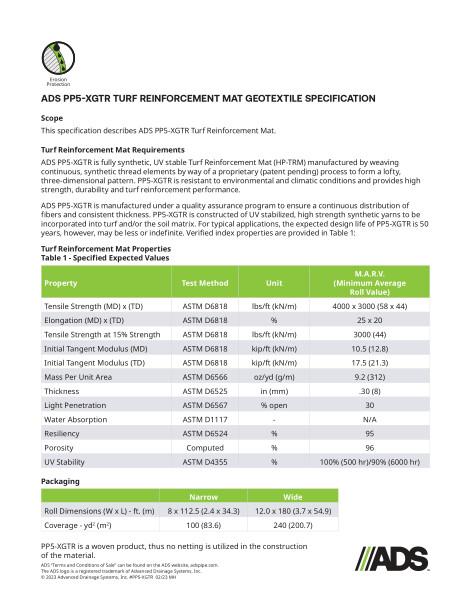

This document is the ADS Geosynthetics PP5-XGTR Turf Reinforcement Mat. Charts for specified expected values, netting and roll dimension are included.

ADS Geosynthetics PP5-HGTR is a fully synthetic, UV stable Turf Reinforcement Mat manufactured by weaving continuous, synthetic thread elements by way of a proprietary process to form a lofty, three-dimensional pattern. PP5-XGTR is resistant to environmental and climatic conditions and provides high strength, durability and turf reinforcement performance.

Each roll of ADS Geosynthetics PP5- XGTR is manufactured under a quality assurance program to ensure a continuous distribution of fibers and consistent thickness. PP5-XGTR is constructed of UV stabilized, high strength synthetic yarns to be incorporated into turf and/or the soil matrix. For typical installations, the expected design life of PP5-XGTR is 50 years, however, may be less or indefinite.

1 table lists the values for specified expected values for tensile strength, elongation, initial tangent modulus, mass per unit area, thickness, light penetration, water absorption, resiliency, UV stability and porosity with test method, value and units. The 2nd table is a note that the PP5-XGTR netting is a woven product, thus no netting is utilized in the material’s construction. Table 3 shows roll dimensions.
