StormTech PVC Inspection Port (SC Series)

Filename:
StormTech PVC Inspection Port (SC Series).dwg

StormTech PVC Inspection Port (SC Series)

StormTech PVC Inspection Port (SC Series).

This document is the StormTech PVC Inspection Port for the SC Series. 4” PVC inspection port is detailed.

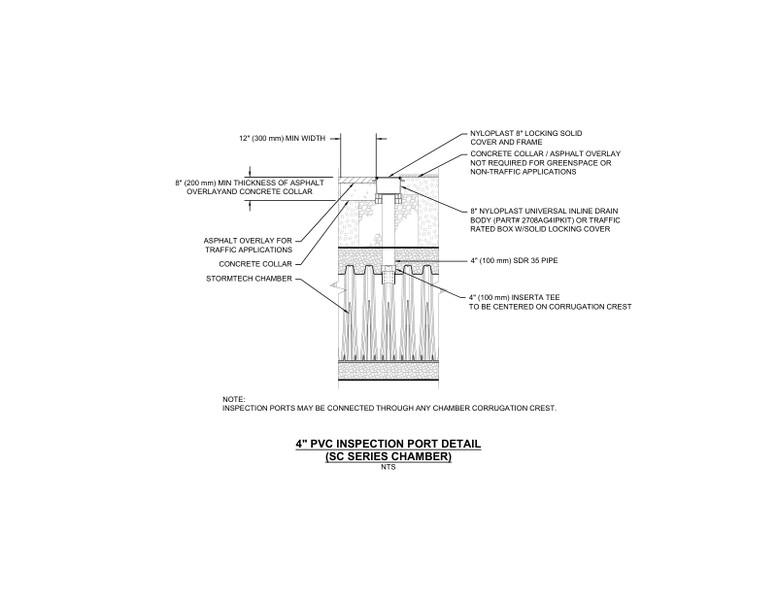

The 4” PVC inspection port detail shows the SC Series concrete collar with or without pavement, pavement, concrete slab placement, 12” minimum width, 8” nyloplast inspection port body or optional traffic rated box with locking cover, 4” SDR 35 pipe, 4” Inserta-TEE centered on corrugation valley with the StormTech chambers below.

A note reminds us that inspection ports may be connected through any chamber corrugation crest.
