12"-60" Fabricated WT Bell-Bell 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)

Filename:
12"-60" Fabricated WT Bell-Bell 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings).pdf

Download Document (pdf) View in Browser
12"-60" Fabricated WT Bell-Bell 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)

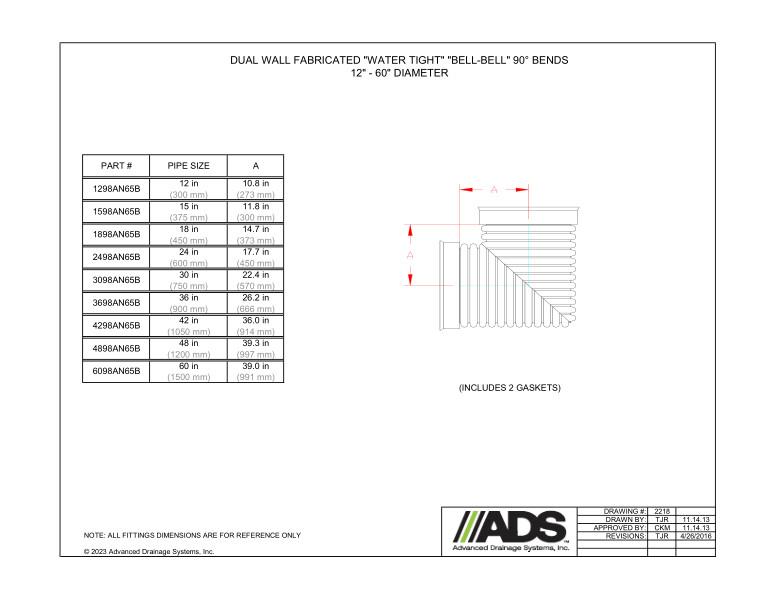

This document is the 12”-60” Fabricated WT Bell-Bell 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). A diagram and table provided.

The illustration of the Bend includes 2 gaskets and A dimensions.

A table with part number, pipe size and A dimensions is provided.

All fittings dimensions are for reference only.

12"-60" Fabricated WT Bell-Bell 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)
