18" x 12" - 18" x 15" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Reducing Wyes)
Filename:
18" x 12" - 18" x 15" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Reducing Wyes).pdf
![18" x 12" - 18" x 15" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Reducing Wyes)](https://assets.adspipe.com/m/6c38c3f19204e46a/webimage-18-x-12-18-x-15-Fabricated-60-Degree-Reducing-Wyes-HDPE-Dual-Wall-Fabricated-Reducing-Wyes.jpg)
This document is the 18" x 12" - 18" x 15" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

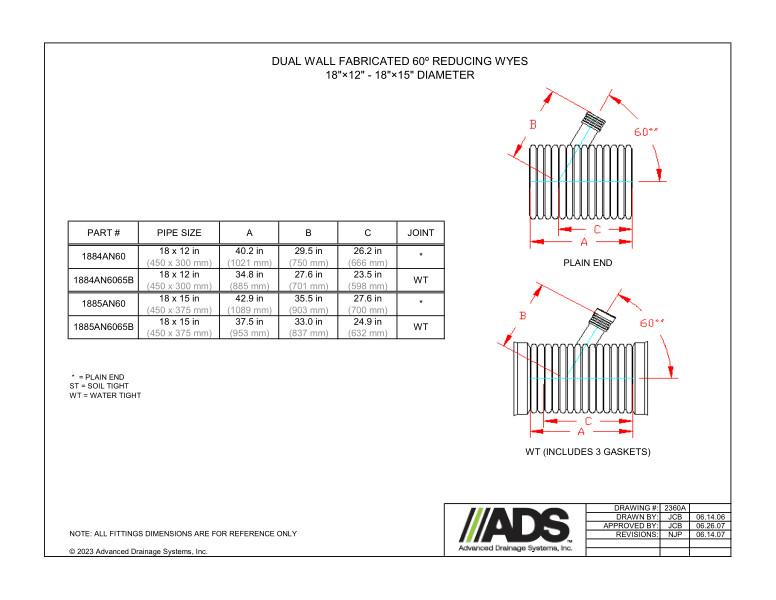

The diagram of the Dual Wall Fabricated 60 Degree Reducing Wyes 18" x 12" - 18" x 15" diameter shows the Plain End Wye with A/B/C dimensions and 60 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 60 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
