This document is the Multiple Cross Tee (HDPE Singlewall Fittings). A Cross Tee diagram with dimensions and directions provided.

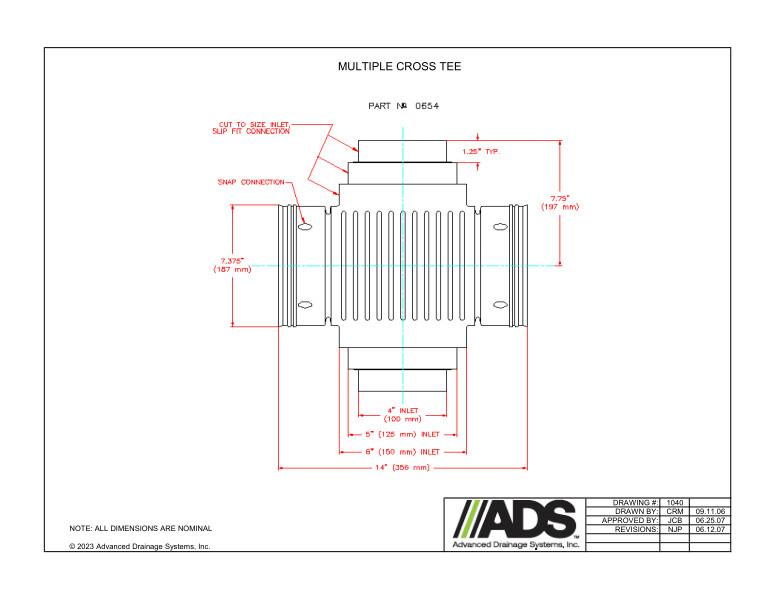

A Cross Tee diagram shows the snap connection, cut to size inlet slip fit connection, various dimensions and various inlet measurements.

All dimensions are nominal.
