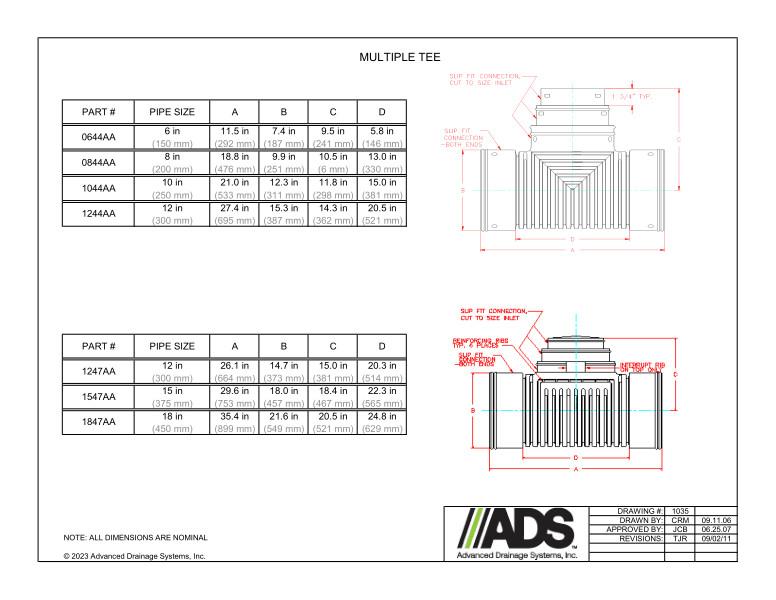

This document is the 6”- 18” Multiple Tees (HDPE Single Wall Fittings). 2 details with tables provided.

The first multiple Tee detail shows the slip fit connection cut to size inlet, slip fit connection both ends and A/B/C/D dimensions. The second multiple Tee detail shows the slip fit connection cut to size inlet, reinforcing ribs TYP-6 places, slip fit connection both ends, interrupt rib on top only and A/B/C/D dimensions.

Tables for both multiple Tees has the values for part number, pipe size and A/B/C/D dimensions.

All dimensions are nominal.
