6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Double Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Double Manifolds (StormTech Dual Wall HDPE Fittings).pdf
![6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Double Manifolds (StormTech Dual Wall HDPE Fittings)](https://assets.adspipe.com/m/78ff278afcbb6053/webimage-6-24-StormTech-Dual-Wall-Fabricated-Soil-Tight-Plain-End-Double-Manifolds-StormTech-Dual-Wall-HDPE-Fittings.jpg)

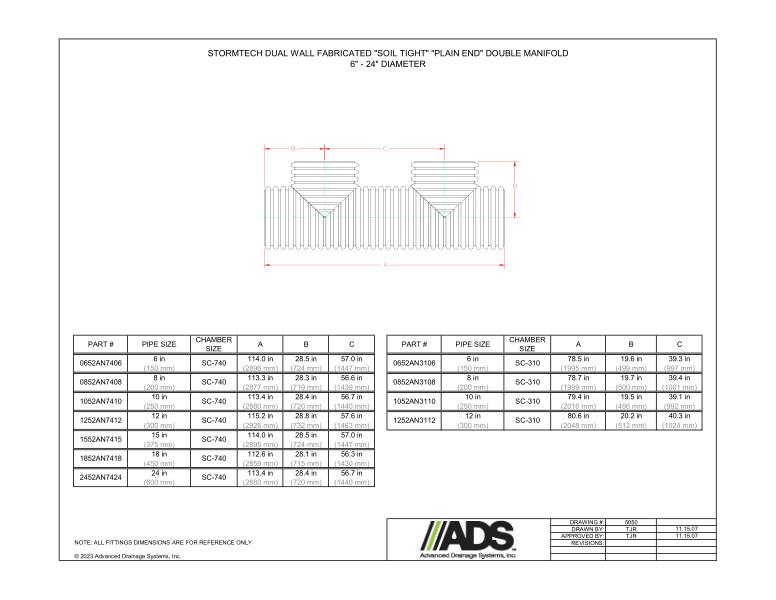

This document is the 6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Double Manifold Bends (StormTech Dual Wall HDPE Fittings). A diagram with table provided.
The StormTech dual wall Fabricated “Soil Tight” “Plain End” Double Manifold Bend 6" - 24" diameter is shown in a diagram that shows A/B/C dimensions.
A table with the information for part number, pipe size and A/B/C sizes is provided.
All fittings dimensions are for reference only.
