This document is the 3” Single Wall Internal Snap Plug (HDPE Single Wall Fittings). A detail with table provided.

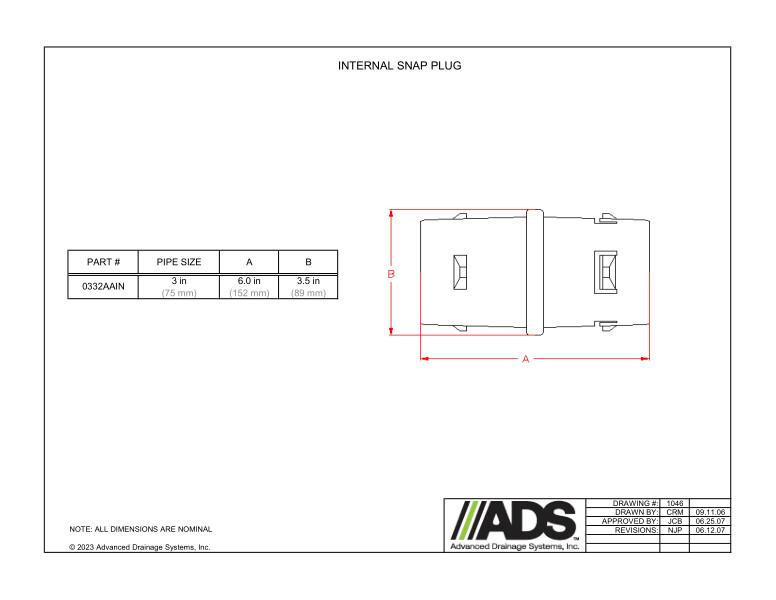

The internal snap plug detail shows the A/B dimensions.

A table with part number, pipe size and A/B dimensions is provided.

All dimensions are nominal.
