18" Dome Grate Assembly Nyloplast Detail
18" Dome Grate Assembly Nyloplast Detail.dwg
This document is the 18" Dome Grate Assembly Nyloplast Detail. It shows the nyloplast ductile dome grate with dimensions.

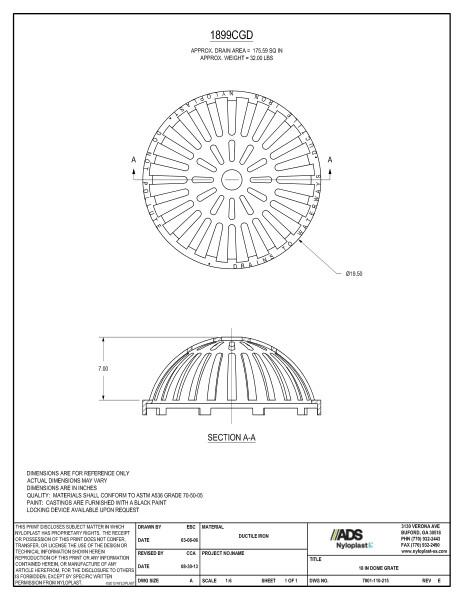

The illustration shows the nyloplast grate with dimensions for approximate drain area of 175.59 SQ inches and approximate weight of 32.00 LBS. A top and side view is shown.
Notes detail that dimensions are for reference only and in inches. Materials shall conform to ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
