30" - 60" Dual Wall Fabricated 11.25 Degree Bends - HDPE Bends Fittings

Filename:
30" - 60" Dual Wall Fabricated 11.25 Degree Bends - HDPE Bends Fittings.pdf

Download Document (pdf) View in Browser
30" - 60" Dual Wall Fabricated 11.25 Degree Bends - HDPE Bends Fittings

This document is the 30”-60” Dual Wall Fabricated 11.25 Degree Bends - HDPE Bends Fittings. Plain end & watertight diagrams and table provided.

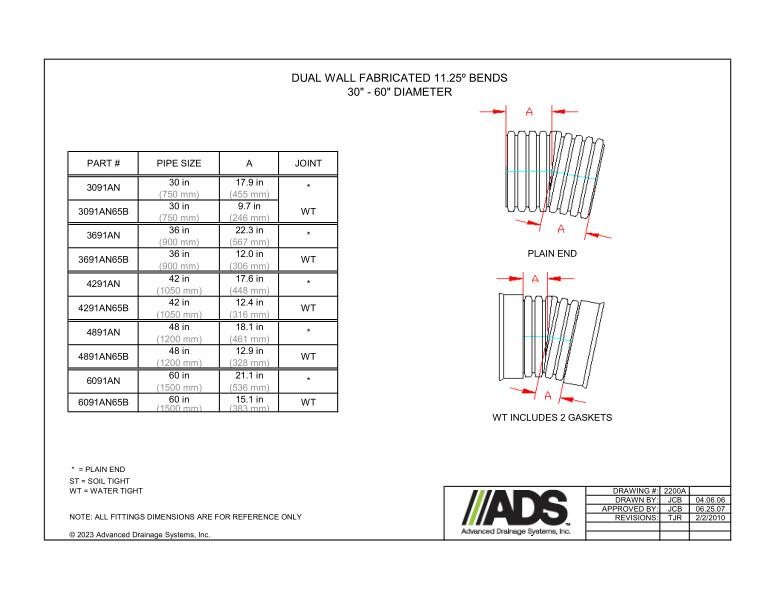

The illustrations of the plain end Bend shows the angle and A dimensions. The WT (includes 2 gaskets) Bend shows the angle and A dimensions.

A table with part number, pipe size and A/Joint dimensions is provided.

All fittings dimensions are for reference only.

30" - 60" Dual Wall Fabricated 11.25 Degree Bends - HDPE Bends Fittings
