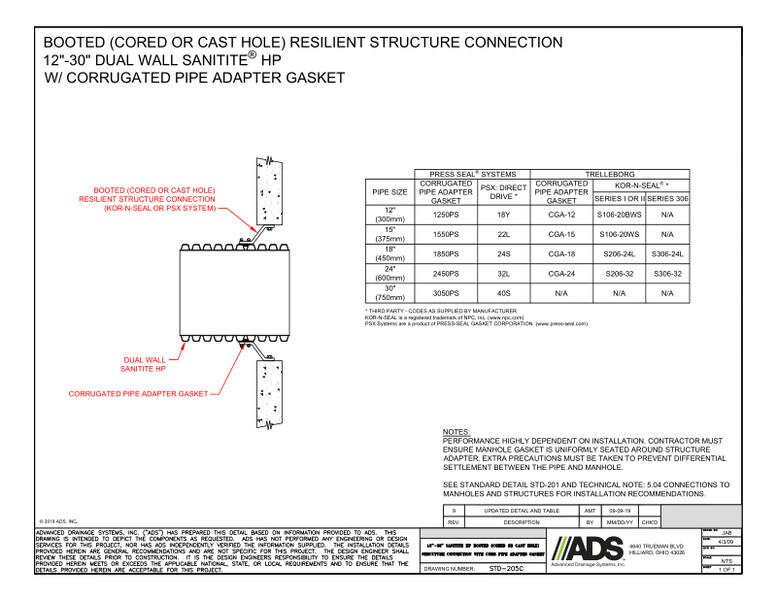

This document is the 205C 12-30 SaniTite HP Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail. Diagram and chart provided.

The diagram shows the Booted (Cored or Cast Hole) Resilient Structure Connection (KOR-N-SEAL or PSX System), dual wall SaniTite HP and corrugated pipe adapter gasket.

A chart provides values for the Press Seal systems with pipe size, corrugated pipe adapter gasket and PSX: Direct Drive. The Trelleborg values are shown for corrugated pipe adapter gasket and KOR-N-SEAL, Series I or II and Series 306.

Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.
