12" - 30" Fabricated Water Tight Bell End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
12" - 30" Fabricated Water Tight Bell End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings).pdf

This document is the 12" - 30" Fabricated Water Tight Bell End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

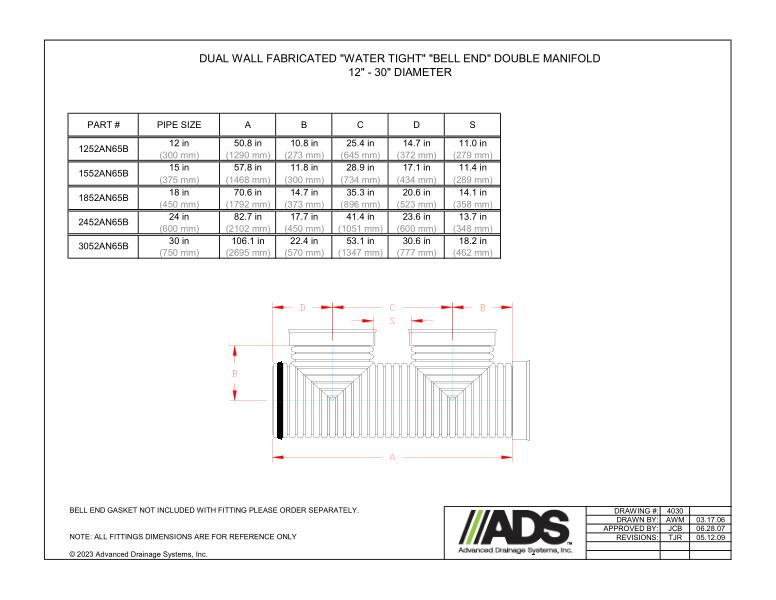

The dual wall fabricated “Water Tight” “Bell-End” Double Manifold 12" - 30" diameter is shown in a diagram that shows A/B/C/D/S dimensions.
A table with the information for part number, pipe size and A/B/C/D/S sizes is provided.
Bell End gasket not included, order separately. All fittings dimensions are for reference only.
