36" Drain Basin Quick Spec Installation Nyloplast Detail
36" Drain Basin Quick Spec Installation Nyloplast Detail .pdf
This document is the 36” Drain Basin Quick Spec Installation Nyloplast Detail. A detailed diagram shows the unit and its variables.

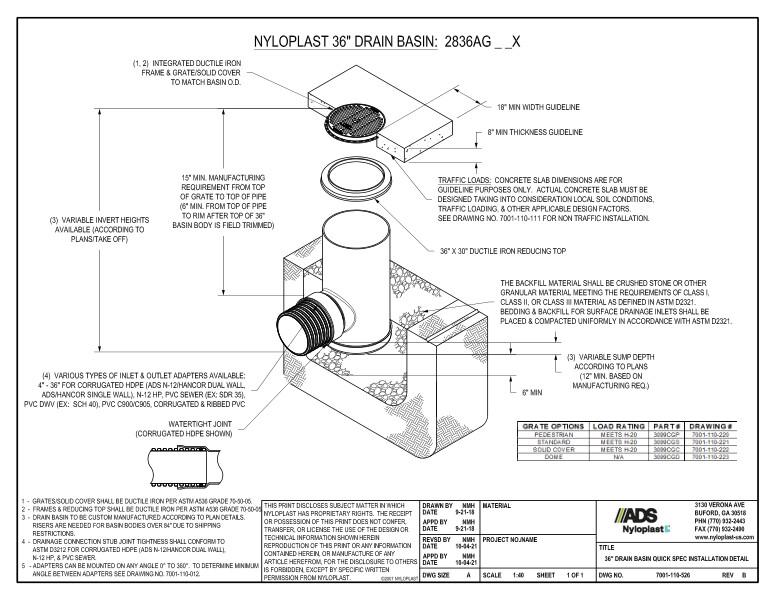

The diagram shows the integrated ductile iron frame and grate/solid cover to match basin, 18” minimum width guideline, 8” minimum width thickness guideline, 15” minimum manufacturing requirement from top of grate to top of pipe, 3 variable invert heights, traffic loads, ductile iron reducing top, backfill material, variable sump depth, watertight joint, various types of inlet and outlet adapters and the drain basin.
Notes include grates/solid covers shall be ductile iron, frames and reducing top shall be ductile iron, drain basin to be custom manufactured, drainage connection stub joint tightness requirements, adapters can be mounted on any angle information.
A chart with grate options, load rating part and drawing numbers included.
