8" - 30" Minimum Angle Between Inserta-Tee Adapters Nyloplast Detail

Filename:
8" - 30" Minimum Angle Between Inserta-Tee Adapters Nyloplast Detail.dwg

Download Document (dwg)
8" - 30" Minimum Angle Between Inserta-Tee Adapters Nyloplast Detail

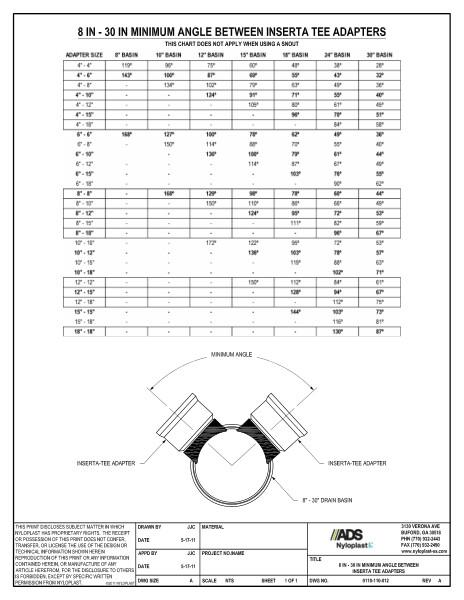

This document is the 8" - 30" Minimum Angle Between Inserta-TEE Adapters Nyloplast Detail. An illustration with chart dimensions shown.

The 8" - 30" Minimum Angle Between Inserta-TEE Adapters chart does not apply when using a snout. The chart shows the adapter sizes for 8” basin, 10” basin, 12” basin, 15” basin, 18” basin, 24” basin and 30” basin.

The illustration shows the 8” and 30” drain basin, 2 Inserta-TEE adapters and the minimum angle.

8" - 30" Minimum Angle Between Inserta-Tee Adapters Nyloplast Detail
