802A Single Wall Sloped Pipe With Double Wide Split-Coupler Installation Detail

Filename:
802A Single Wall Sloped Pipe With Double Wide Split-Coupler Installation Detail.dwg

802A Single Wall Sloped Pipe With Double Wide Split-Coupler Installation Detail

This document is the 802A Single Wall Sloped Pipe With Double Wide Split-Coupler Installation Detail. It shows the pipe detail with descriptions and notes.

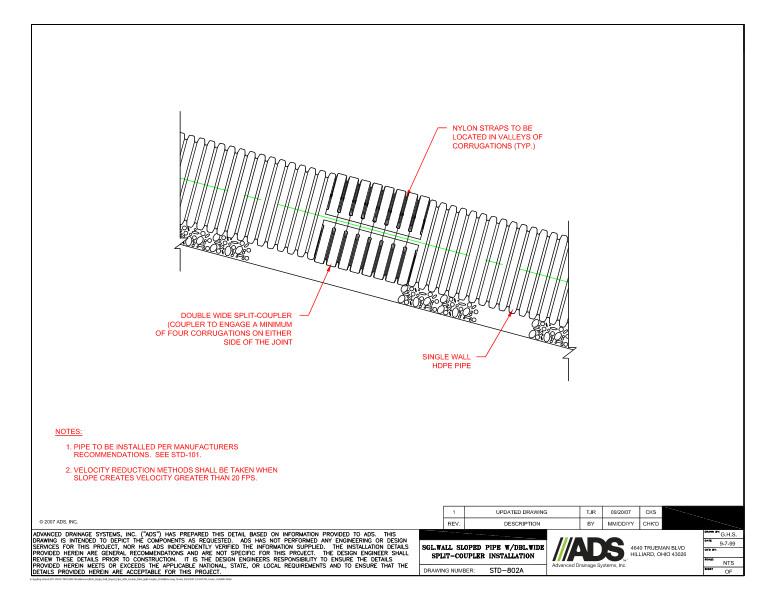

This side view detail shows the nylon straps to be located in valleys of corrugations, Double Wide split coupler which engages a minimum of 4 corrugations on either side of the joint and the single wall HDPE pipe.

Notes state that pipe to be installed per manufacturers recommendation and velocity reduction methods shall be taken when slope creates velocity grater than 20 FPS.
