StormTech Storm Chamber Soil Tight Extended Prefab End Cap Stub Lengths (StormTech Dual Wall HDPE Fittings)
Filename:
StormTech Storm Chamber Soil Tight Extended Prefab End Cap Stub Lengths (StormTech Dual Wall HDPE Fittings).pdf
This document is the StormTech Storm Chamber Soil Tight Extended Prefab End Cap Stub Lengths (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

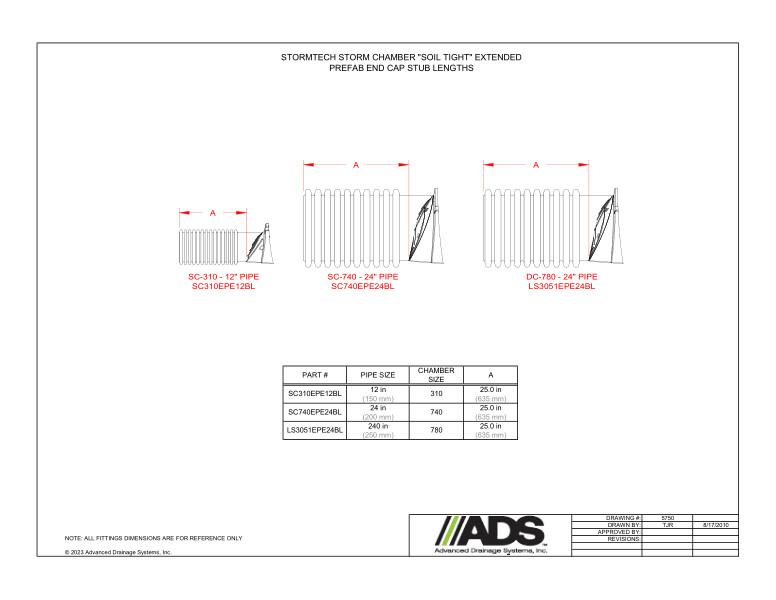

StormTech Storm Chamber Soil Tight Extended Prefab End Cap Stub Lengths shows the diagrams for the SC-310 – 12” pipe, SC-740 – 24” pipe and the DC-780 – 24” pipe with A dimensions.
The table lists the part number, pipe size, chamber size and A dimension values.
All fittings dimensions are for reference only.
