30" - 36" Fabricated Reducing Saddle Tees (HDPE Dual Wall Fabricated Tees Fittings)

This document is the 30" - 36" Fabricated Reducing Saddle Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.

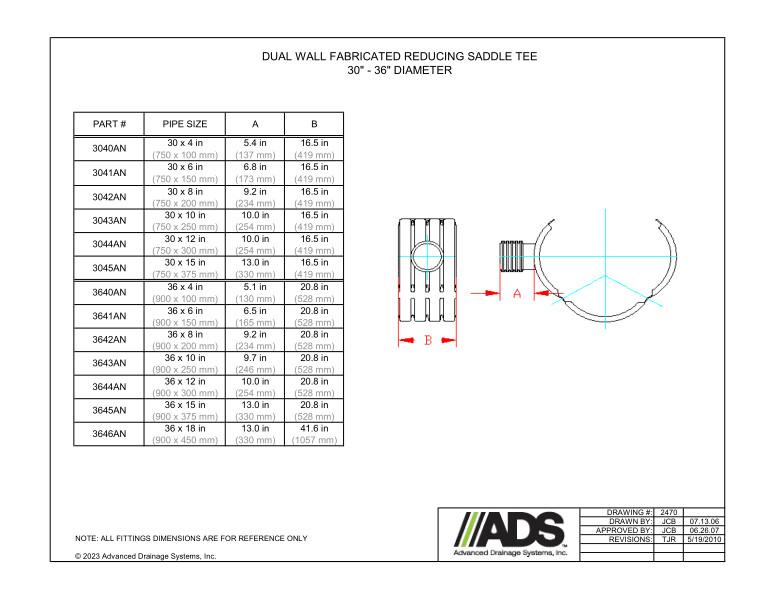

The dual wall Fabricated Reducing Saddle Tees 30" - 36" diameter is shown in a side view and saddle view diagram that shows A/B dimensions.

A table with the information for part number, pipe size and A/B sizes is provided.

All fittings dimensions are for reference only.

30" - 36" Fabricated Reducing Saddle Tees (HDPE Dual Wall Fabricated Tees Fittings)
