48" x 4" - 48" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)

Filename:
48" x 4" - 48" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf

48" x 4" - 48" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)

This document is the 48" x 4" - 48" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.

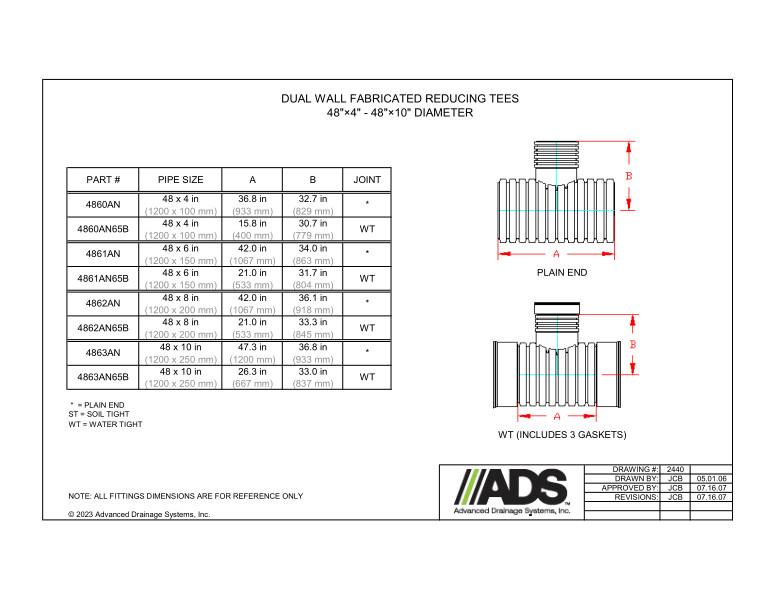

The dual wall Fabricated Reducing Tees 48" x 4" - 48" x 10" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.

A table with the information for part number, pipe size and A/B/Joint sizes is provided.

All fittings dimensions are for reference only.
