4 X 4 X 4 Downspout Adapter Nyloplast Detail

Filename:
4 X 4 X 4 Downspout Adapter Nyloplast Detail.dwg

4 X 4 X 4 Downspout Adapter Nyloplast Detail

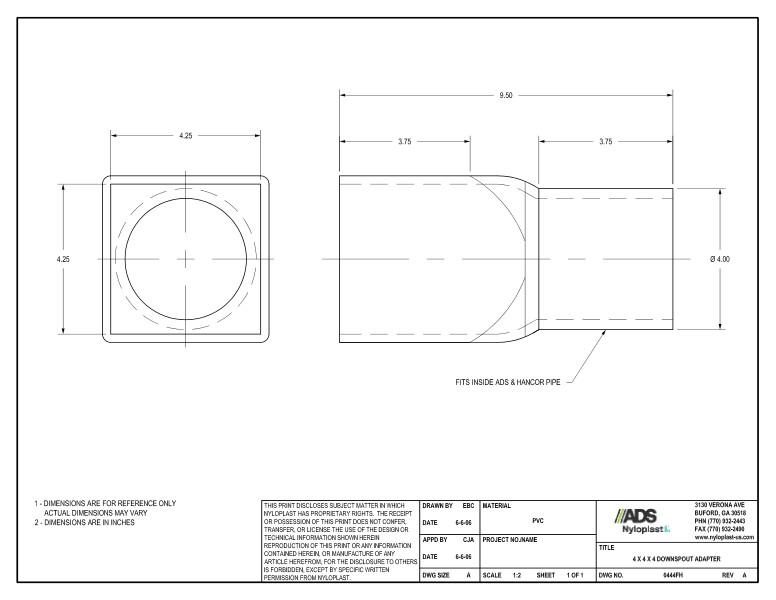

This document is the 4 x 4 x 4 N-12 Downspout Adapter Nyloplast Detail. Dimensions and nyloplast illustration shown.

The detail shows the dimensions and indicates how it fits inside ADS & Hancor pipe.

A note states that dimensions are for reference only. Note 2 specifies that dimensions are in inches.
