Inlet Filter Pure Product Sheet

Inlet Filter Pure Product Sheet.pdf

Inlet Filter Pure Product Sheet

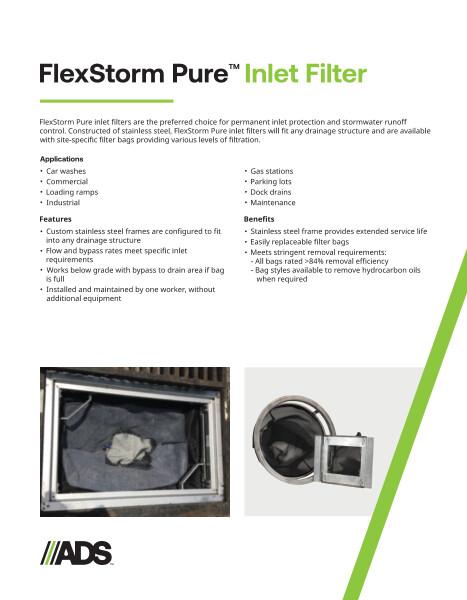

The sell sheet gives information on the FlexStorm Pure™ Inlet Filter including applications, features and benefits and the product’s specification.

FlexStorm Pure inlet filters are a permanent inlet protection and controls stormwater runoff. Pure filters are configured to fit any drainage structure and are available with site-specific filter bags providing various filtration levels.

Features of the Catch-It filter are the a custom stainless steel frame fits any drainage structure, it installs quickly without additional equipment, works below grade with bypass to drain the area if the bag is full and the flow and bypass rates meet specific inlet requirements.

The Pure filter has an extended life due to the stainless steel frame and easily replaceable filter bags. It also meets removal requirements of >80% street sweep-size particles and has an optional FXP/PXP bag for hydrocarbon removal.

Applications of the FlexStorm Pure are car washes, commercial, loading ramps, industrial, gas stations, parking lots, dock drain and maintenance areas.

The specification page gives material and performance, installation, inspection, maintenance and filter bag replacement guidelines.

FlexStorm Pure has a standard woven polypropylene “FX” filter bag rated for 200 gpm/sqft with an 82% removal efficiency when filtering a USDA Sandy Loam sediment load.

The installation guidelines include removing grate from inlet and cleaning the ledge. The inlet filter is then suspended onto the structure’s load-bearing ledge. After replacing the grate, the installer should confirm the grate is no elevated more than 1/8” (3 mm).

Inspection of Pure filters should occur following rain events over ½” (13 mm) and should be monitored to current site runoff conditions. Filter inspections should occur a minimum of three times per year and in snowfall affected regions inspections prior to and after snowfall season. In industrial applications, inspections should be on a recurring basis no less than four times per year.

The Pure inlet filter should be maintained by emptying the filter bag manually or with an industrial vacuum being careful not to damage the geotextile bag. Follow EPA guidelines to dispose of oil-contaminated products and recovered oils.
