12" - 30" Fabricated Water Tight Gasket End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)

Filename:
12" - 30" Fabricated Water Tight Gasket End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings).pdf

12" - 30" Fabricated Water Tight Gasket End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)

This document is the 12" - 30" Fabricated Water Tight Gasket End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

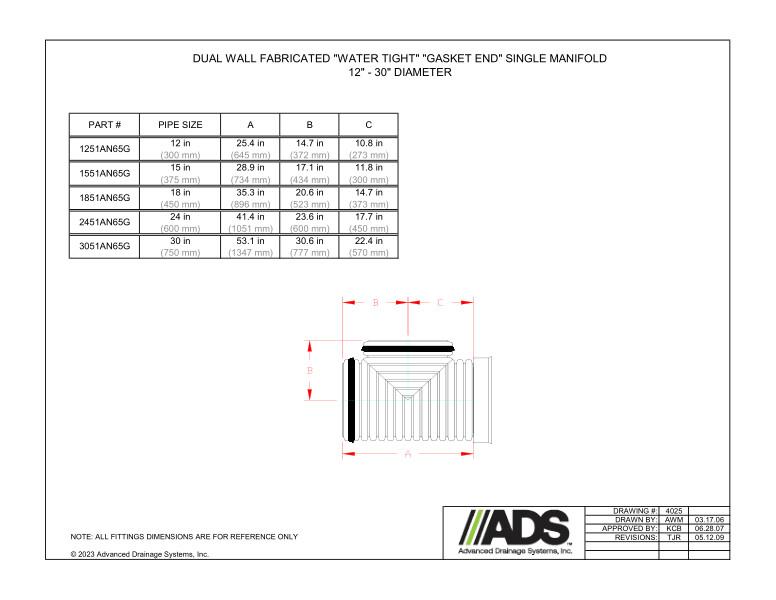

The dual wall Fabricated “Water Tight” “Gasket End” Single Manifold 12" - 30" diameter is shown in a diagram that shows A/B/C dimensions.

A table with the information for part number, pipe size and A/B/C sizes is provided.

All fittings dimensions are for reference only.
