USGA Front Perimeter Sand Green Profile (AdvanEDGE) Detail

Filename:
USGA Front Perimeter Sand Green Profile (AdvanEDGE) Detail.pdf

Download Document (pdf) View in Browser
USGA Front Perimeter Sand Green Profile (AdvanEDGE) Detail

This document is the USGA Front Perimeter Sand Green Profile (AdvanEDGE) Detail. Diagrams with descriptions provided.

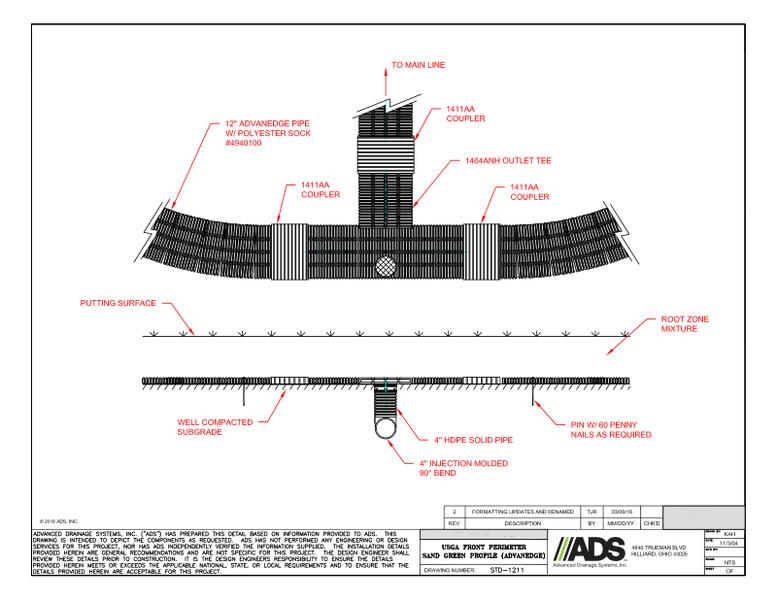

The USGA Front Perimeter Drain Green diagram shows direction to main line, couplers, 12” AdvenEdge pipe with polyester sock and outlet Tee.

The putting surface diagram shows the putting surface, root zone mixture, well compacted subgrade, 4” HDPE solid pipe, 4” injection molded 90 degree bend and pin w/60 penny nails as required.

USGA Front Perimeter Sand Green Profile (AdvanEDGE) Detail
