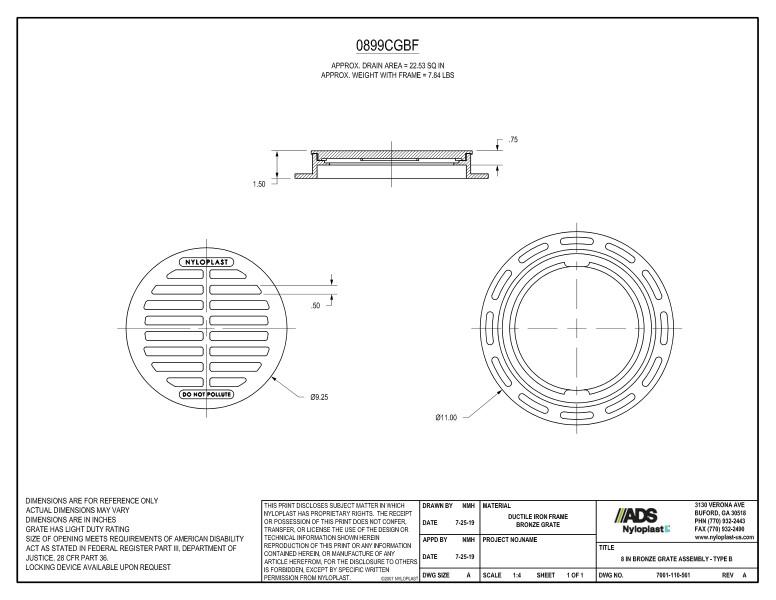

This document is the 8" Bronze Grate Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

The top down illustration shows the nyloplast grate with dimensions with approximate drain area of 22.53 SQ inches and approximate weight of 7.84 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Size of opening meets requirements of American Disability Act. Locking device available upon request.
