24" HP Stop Coupling Nyloplast Detail
Filename:
24" HP Stop Coupling Nyloplast Detail.pdf

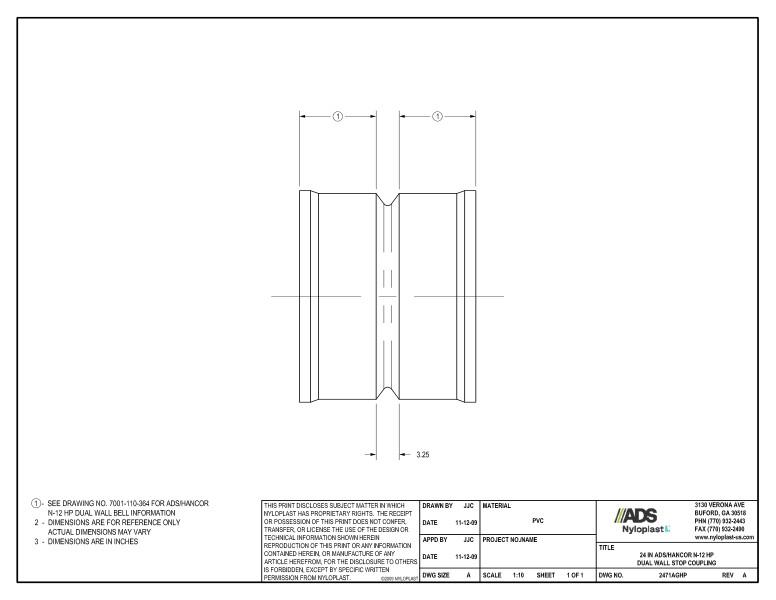

This document is the 24” HP Stop Coupling Nyloplast Detail. Illustration shown with dimensions and notes.
The illustration shows the 3.25 dimension.
Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.
