910 Arc Side Port Coupler Serial Distribution Detail

Filename:
910 Arc Side Port Coupler Serial Distribution Detail.pdf

Download Document (pdf) View in Browser
910 Arc Side Port Coupler Serial Distribution Detail

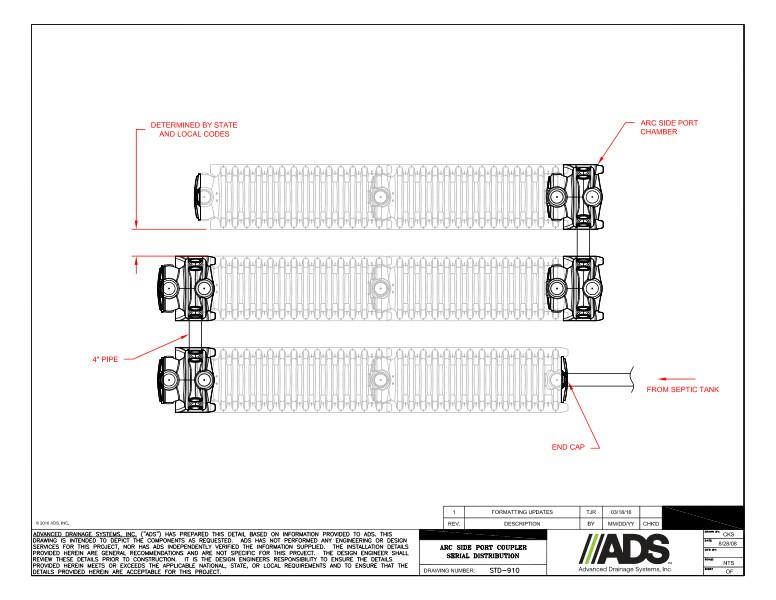

This document is the 910 Arc Side Port Coupler Serial Distribution Detail. Details with directional indicators shown.

The details show the locations for arc side port chamber and space determined by state and local codes. Directional indicators from septic tank and location of 4” pipe and end cap is shown.

910 Arc Side Port Coupler Serial Distribution Detail
