8" Standard Grate Assembly (Drain Basin) Nyloplast Detail

Filename:
8" Standard Grate Assembly (Drain Basin) Nyloplast Detail.dwg

8" Standard Grate Assembly (Drain Basin) Nyloplast Detail

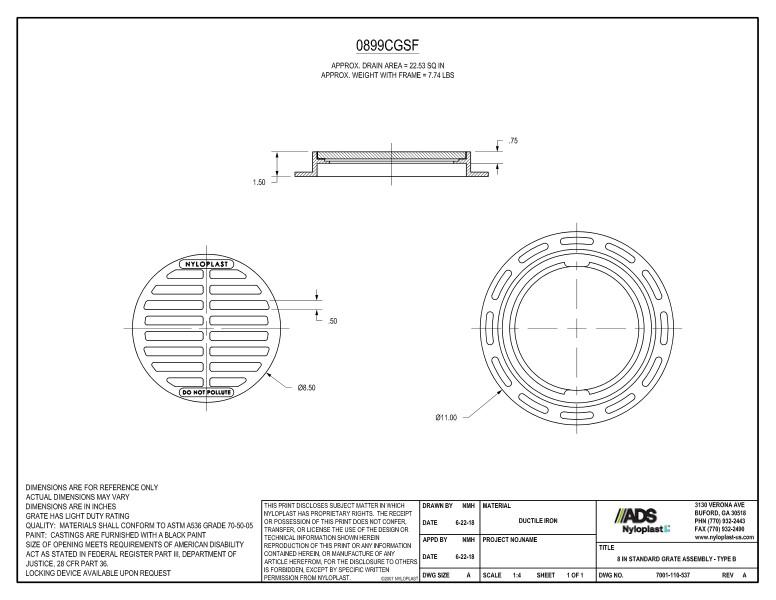

This document is the 8" Standard Grate Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast ductile grate and frame with dimensions.

The top down illustration shows the nyloplast grate with dimensions with approximate drain area of 22.53 SQ inches and approximate weight of 7.74 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. Size of opening meets requirements of American Disability Act. Locking device available upon request.
