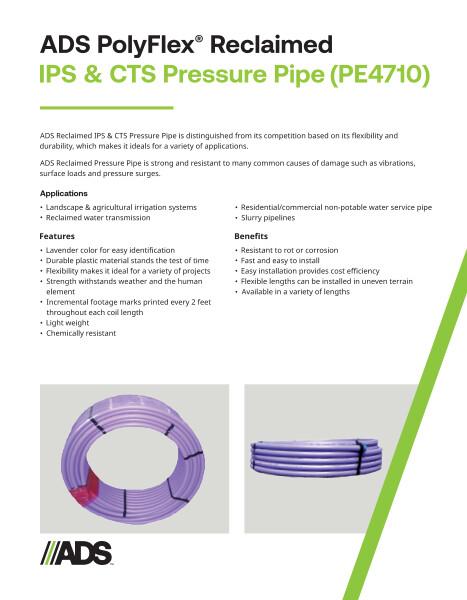

ADS PolyFlex Reclaim Pipe Product Sheet

ADS PolyFlex Reclaim Pipe Product Sheet.pdf

ADS PolyFlex Reclaim Pipe Product Sheet

The document is the ADS PolyFlex® Reclaimed IPS & CTS Pressure Pipe sell sheet.

ADS Reclaimed IPS and CTS pressure pipe is distinguished from its competition based on its flexibility and durability. It is strong and resistant to many common causes of damage such as vibrations surface loads and pressure surges.

Applications include landscape and agricultural irrigation systems, reclaimed water transmission, residential/commercial non-potable water service and slurry pipelines.

ADS PolyFlex® Reclaimed IPS & CTS Pressure Pipe is lavender colored for easy identification, has incremental footage marks printed every 2 feet and is chemically resistant to rot or corrosion. Easy installation provides cost efficiency and the flexible lengths can be installed in uneven terrain. The pipe is available in a variety of lengths.

The specification describes ADS Reclaimed Water Service Tubing (CTS) pipe SIDR 7 and SDR 9 for use in reclaimed water service applications. The information includes pipe requirements, material properties, disinfection maintenance, installation and tubing properties information.

ADS reclaimed water service tubing meets ASTM D2239 (IPS) and ASTM D2737 (CTS) and AWWA C901 requirements and the pipe’s dimensions meet ID controlled Iron Pipe Size (IPS) and Copper Tubing Size (CTS) standards. The pipe is lavender in color.

The material properties are high-density polyethylene conforming to the minimum requirements of cell classification 445574C CC3 or 445574E CC3 described in ASTM D3350. The resin’s material designation code is PE4710 as designated by the Plastic Pipe Institute.

The active chlorine content of the disinfecting solutions shall not exceed 12% and must be flushed from all lines within the system. Industry accepted procedures, like ANSI/AWWA C651 Disinfecting Water Mains, should be followed for both new and repaired reclaimed water lines.

Installation is similar to other flexible tubing/pipe products. Methods include direct bury, plowing or pulling are applicable per local, state or federal guidelines.

The tubing properties table shows outside diameter, wall thickness, pressure rating and weight for ½”, ¾”, 1”, 1 ¼”, 1 ½” and 2” pipe for SIDR 7 and SDR 9.
