This document is the 4”-24” Fabricated Manifold Inlet Riser (HDPE Dual Wall Fabricated Manifolds Fittings). Inlet Riser and manifold diagrams with table and notes provided.

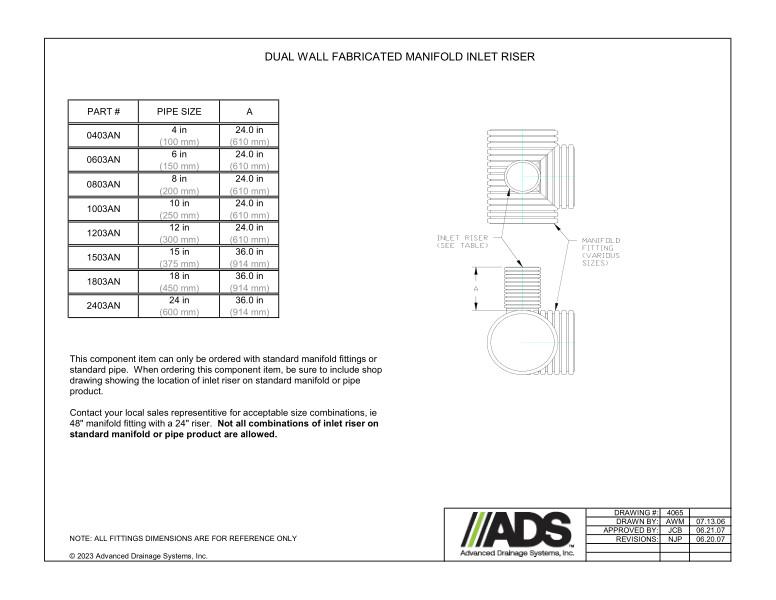

The dual wall fabricated Manifold Inlet Riser is shown in a side and top view diagram that shows manifold fittings (various sizes).

A table with the information for part number, pipe size and A sizes is provided.

This component item can only be ordered with standard manifold fittings or standard pipe. When ordering this component item, be sure to include shop drawing showing the location of stub on standard manifold or pipe product. Contact your local sales representative for acceptable size combinations, i.e. 48" manifold fitting with a 24" stub. Not all combinations of stub on standard manifold or pipe product are allowed.

All fittings dimensions are for reference only.
