904 Arc 36 HC Chamber and End Cap Detail

Filename:
904 Arc 36 HC Chamber and End Cap Detail.pdf

Download Document (pdf) View in Browser
904 Arc 36 HC Chamber and End Cap Detail

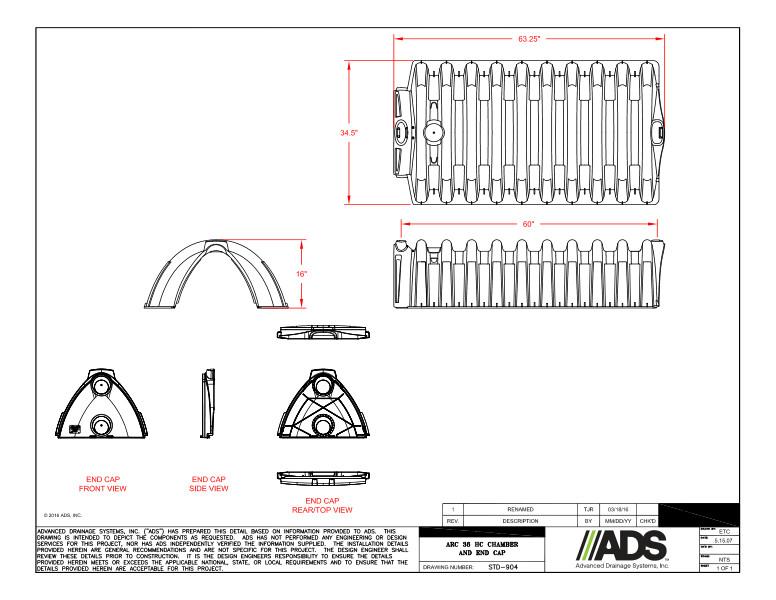

This document is the 904 Arc 36 HC Chamber and End Cap Detail. Details show the chamber and end cap with descriptions and dimensions.

The details show the end cap front view, end cap side view and end cap rear/top view. Chamber dimensions are included.
