12" - 60" Joint Pusher (HDPE Dual Wall Miscellaneous Fittings)

Filename:
12" - 60" Joint Pusher (HDPE Dual Wall Miscellaneous Fittings).pdf

12" - 60" Joint Pusher (HDPE Dual Wall Miscellaneous Fittings)

This document is the 12” x 60” Joint Pusher (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

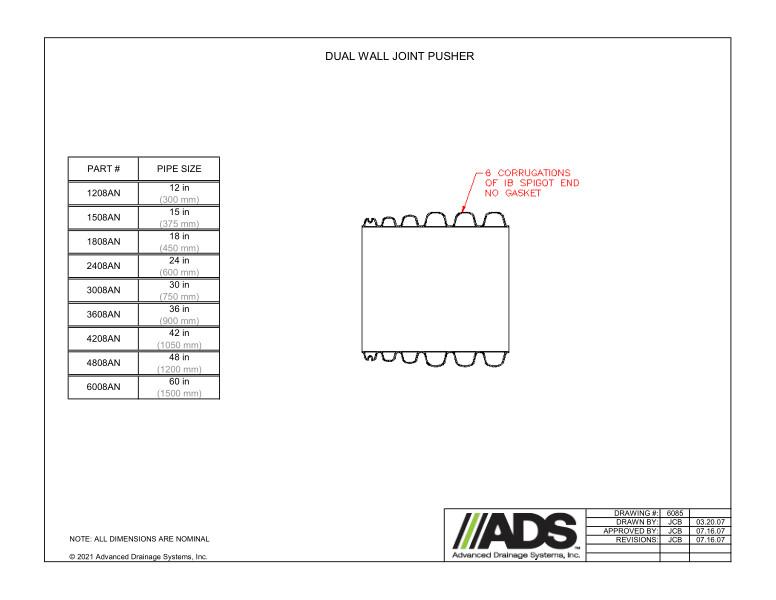

The Dual Wall Joint Pusher diagram is shown with 6 corrugations of IB spigot end, no gasket.

A table with the information for part number and pipe size is provided.

All dimensions are nominal.
