12"-60" WT Mitered Bell-Bell Couplers (HDPE Dual Wall Couplers Fittings)

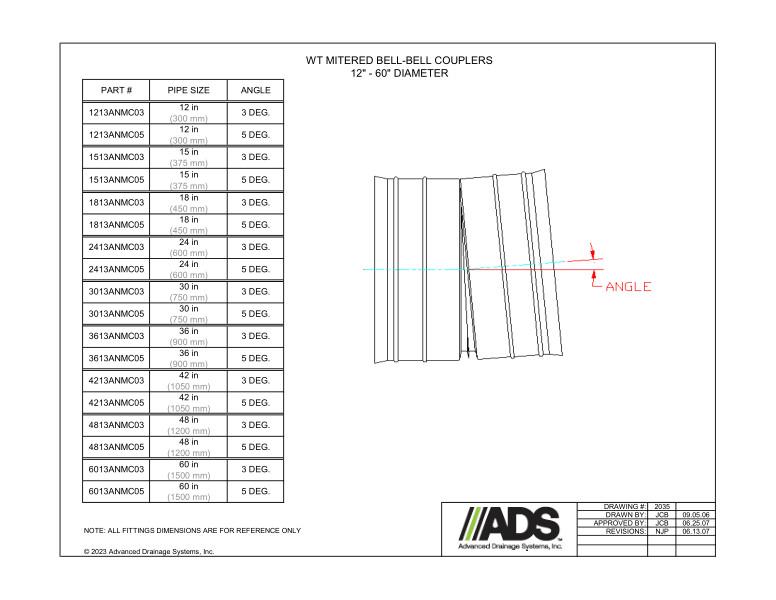

This document is the HDPE Dual Wall Couplers - WT Mitered Bell-Bell Couplers 12" - 60" Diameter. Coupler illustration with reference table is shown.

The WT Mitered Bell-Bell Couplers 12”-60” diameter side view illustration with angle is shown. A table with part number, pipe size and angle is provided.

All fittings dimensions are for reference only.
