This document is the 606 SaniTite HP to Dissimilar Pipe Connection Detail. Diagram and notes explain connection.

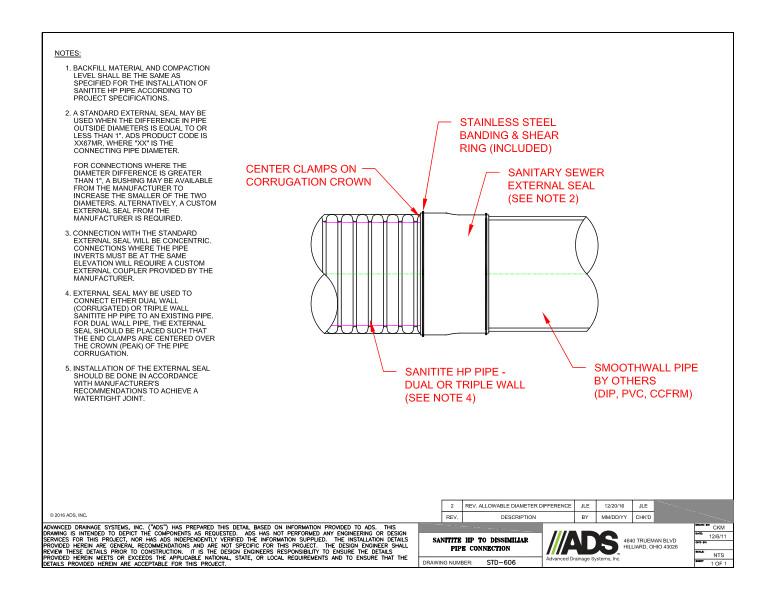

The diagram shows the pipe connection with stainless steel banding & shear ring (included), center clamps on corrugated crown, SaniTite HP pipe-dual or triple wall and smoothwall pipe by others (DIP,PVC, CCRM).

Notes state that the backfill material and compaction level shall be specified for the installation of SaniTite HP pipe. A standard external seal may be used when the difference in pipe outside diameter is equal to or less than 1”. For connections that are greater, a bushing may be used. Connection with the standard external seal shall be concentric. External seal may be used to connect dual wall or triple wall SaniTite HP pipe to an existing pipe. Installation of the external seal to achieve a watertight joint.
