12 x 4 N-12 Dual Wall Tee with SCH 40 Bell Nyloplast Detail
12 x 4 N-12 Dual Wall Tee with SCH 40 Bell Nyloplast Detail.dwg

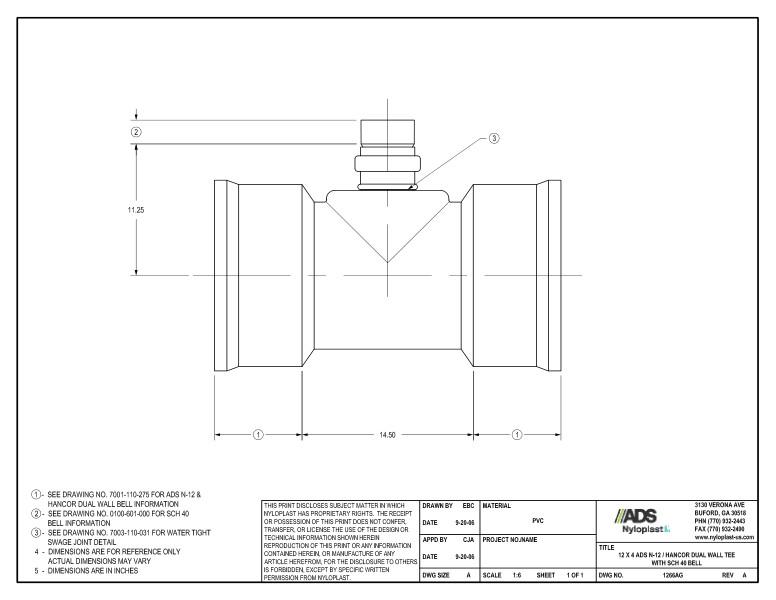

This document is the 12 x 4 N-12 Dual Wall Tee with SCH 40 Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to a drawing for SCH 40 Bell information. Note 3 refers to drawing for water tight SWAGE joint detail. A note on dimension 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
