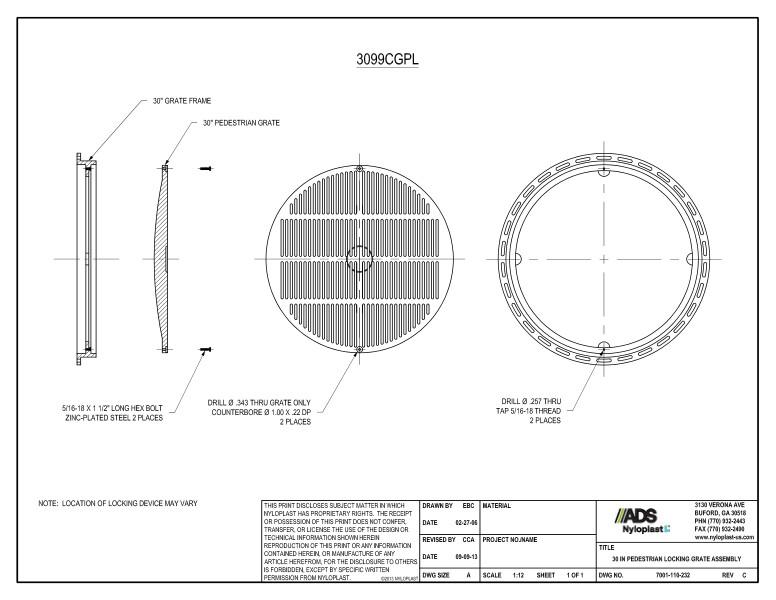

This document is the 30” Pedestrian Locking Grate Assembly Nyloplast Detail. It shows the grate illustrations with descriptions.

The side view illustration shows the 30" grate frame, 30" pedestrian grate and 5/16-18 x 1 1/2” long hex bolt, zinc plated steel in 2 places. The top down view shows the grate drill hole. The top down view of the frame shows the drill thru tap thread in 2 places.

Location of locking device may vary.
